GCE Factory Sale Price Low Voltage Bms 16S 48V 150A 15s Bms Lifepo4 For Solar Energy Storage Lithium Ion Batteries

Brand Name : GCE

Model Number : RBMS07-S23-125A480V

Certification : CE/RoHS/MSDS

Place of Origin : China

MOQ : 10 Sets

Price : negotiate with cara@hngce.com

Payment Terms : L/C, T/T

Supply Ability : 1000 sets/per month

Delivery Time : 15-30 working days

Packaging Details : 770*560*240mm

Humidity : 5%~75%RH

Insulation withstand voltage : 2800VDC ＜1mA 1min

Operating Temperature : -20℃~60℃

Max. Charging Current : 125A

Max. Charging Power : 60KW

Power Supply : DC12V-DC48V

Max. Cell Number : 150S

Max. Discharging Power : 60KW

rated voltage : 480V

Contact Now

GCE factory sale price low voltage bms 16S 48V 150A 15s bms lifepo4 forsolar energy storage lithium ion batteries

Application

◎ PV power plant storage
◎ Island off-grid energy storage
◎ Optical storage charge integration applications
◎ Micro-grid applications
◎ UPS power supply
◎ Power System 220V DC power supply

Product Specification

Basic parameters	Cell type	lithium iron phosphate
	Rated Capacity	100AH
	battery strings	16S
	Rated working current	100A
	Maximum current limit charging current	10A(Battery)(40V)
	Maximum charging voltage	57V
balance	Balance type	Passive balance
balance	Balance current	100mA±10mA (Single cell 3.40V)
Temperature sampling	Battery temperature sensor	4
	PCB temperature sensor	1
	Environmental temperature sensor	1
	Sampling accuracy	±2℃
Voltage sampling	Sampling accuracy	Single cell±15mV＠25℃
Current sampling	Sampling range	150A/-150A (charge/- discharge)
	Sampling accuracy	FSC±5%
SOC	error	≤5%
Power consumption	Sleep mode	≦ 400uA
Power consumption	working mode	≦ 16 mA/28 MA(Current limit charging)
Communication interface/protocol	RS485/custom protocol	1 way, for internal communication (battery master and slave are connected in parallel)
	RS485	1 way, for communication with energy storage inverter
	CAN(optional)	1 way, for communication with energy storage inverter
Other options	Data collection box (optional)	Optional no(Default)
	Reverse connection protection (optional)	yes no(Default)
	Parallel requirements (optional)	needed(Default) no need
	Heating film (optional)	needed no need(Default )
	BMS status output	LED(Default value) DO
	External display	yes no(Default value)
	Pre-discharge resistor	Externa BMS board Default)

BMS COMPONENT SIZE AND INTERFACE

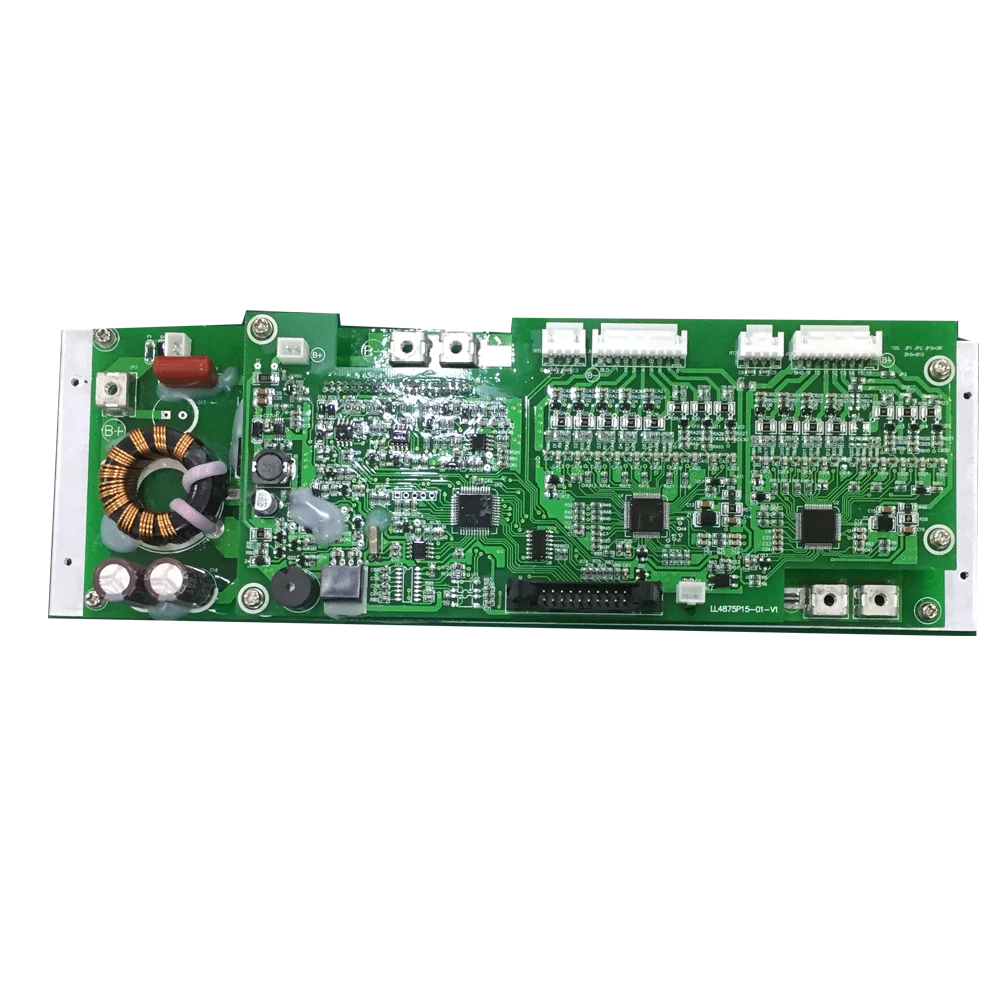

Main board

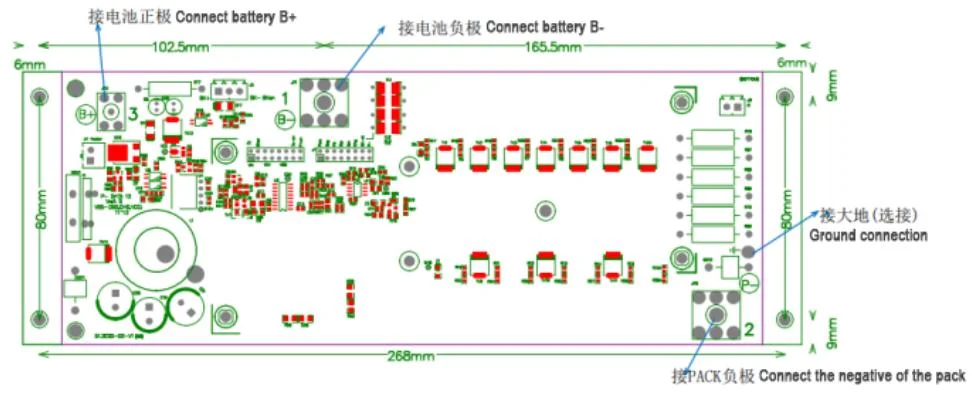

Schematic diagram of motherboard wiring harness connection (two PCB boards have been
assembled together before leaving the factory)

Note: battery sampling line 9PIN+8PIN

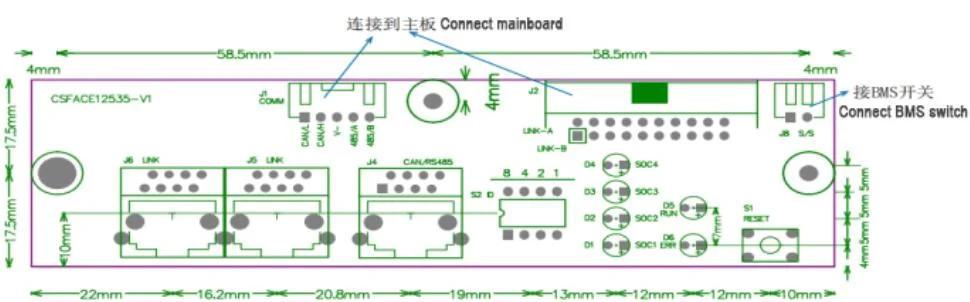

Interface board

The interface board is installed parallel to the front panel of the chassis;

BMS installation size:

Company Profile

Hunan GCE Technology Co., Ltd.(GCE) is a high-tech company specializing in the R&D and production of BMS and battery energy storage systems for over 10 years. Our products are mainly used for industrial & commercial energy storage and home energy storage.
30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users.
60s-405s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1500V.
7.68KWh-40.96KWh Stackable Home Energy Storage System support 3-8 HV battery modules that are connected in sereis, with small volume, light weight, plug-in embedded design modules, Built-in smart BMS, easy to install and maintain.

Why Choose Us

Over 10 years of production experience

More than 10 years of development and accumulation, we has unparalleled advantages in the BMS
industry.
Strong development team
We have many senior BMS R&D engineers. He has considerable experience in R&D, debugging, and
rectification of new products.

Professional service
We have an excellent service team. Quickly respond to orders and product abnormalities. Everything
is customer-centric.

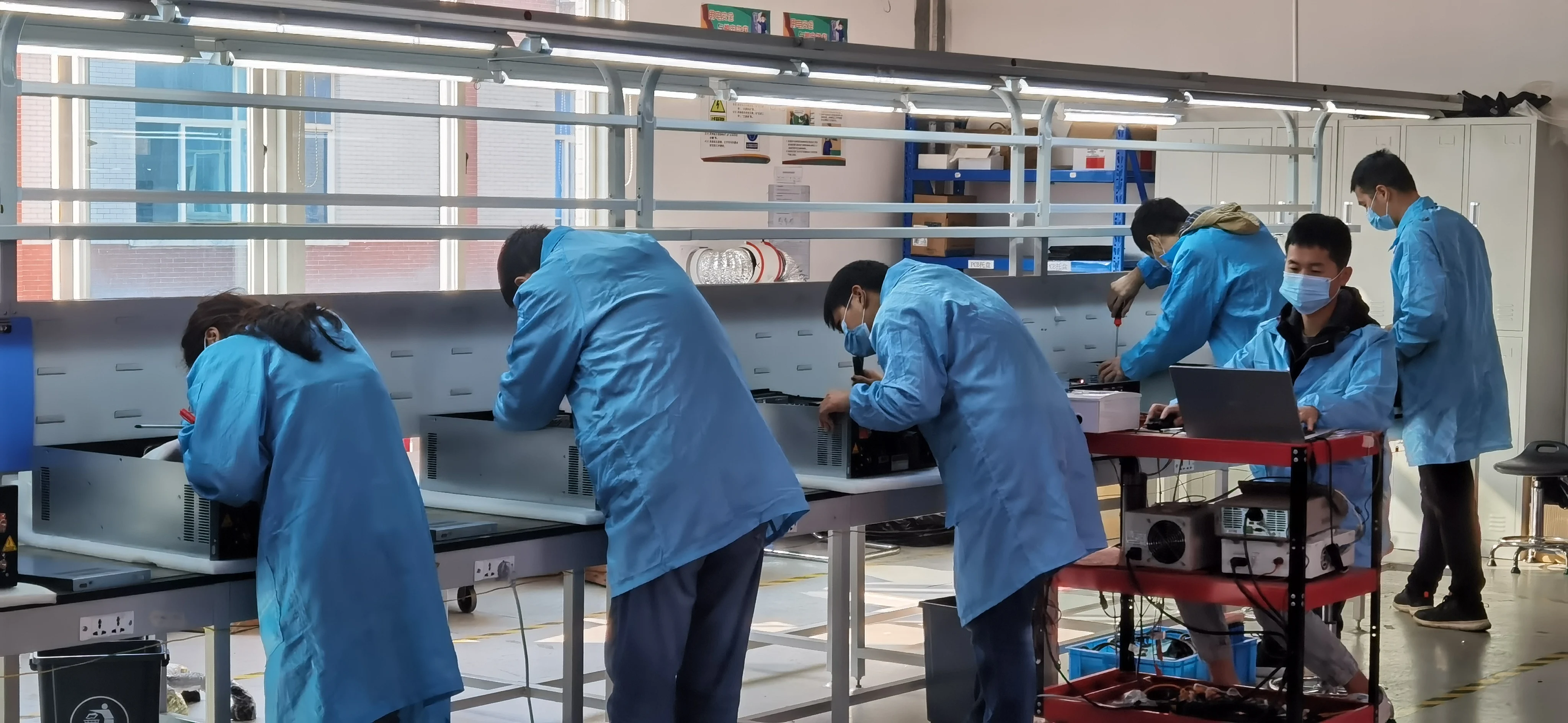

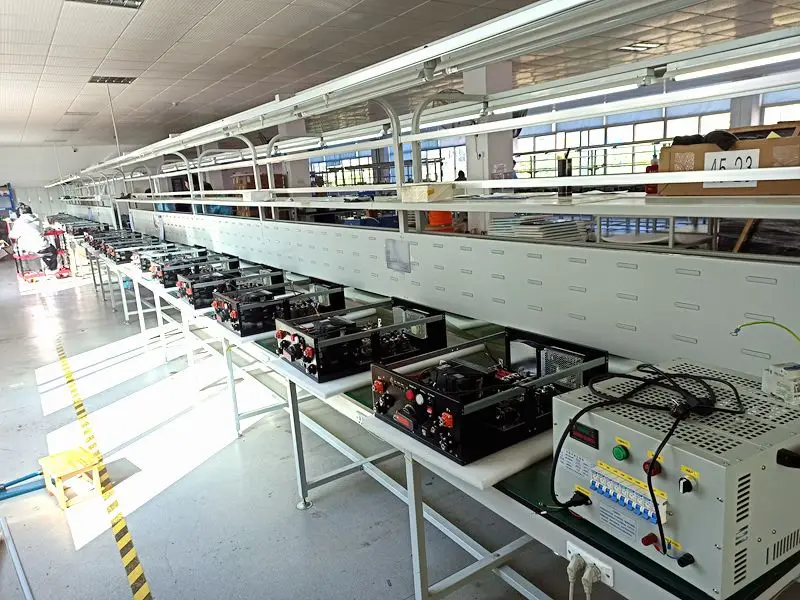

Efficient production system process

We have advanced production process. It only takes 15 days from order to delivery for conventional
products.

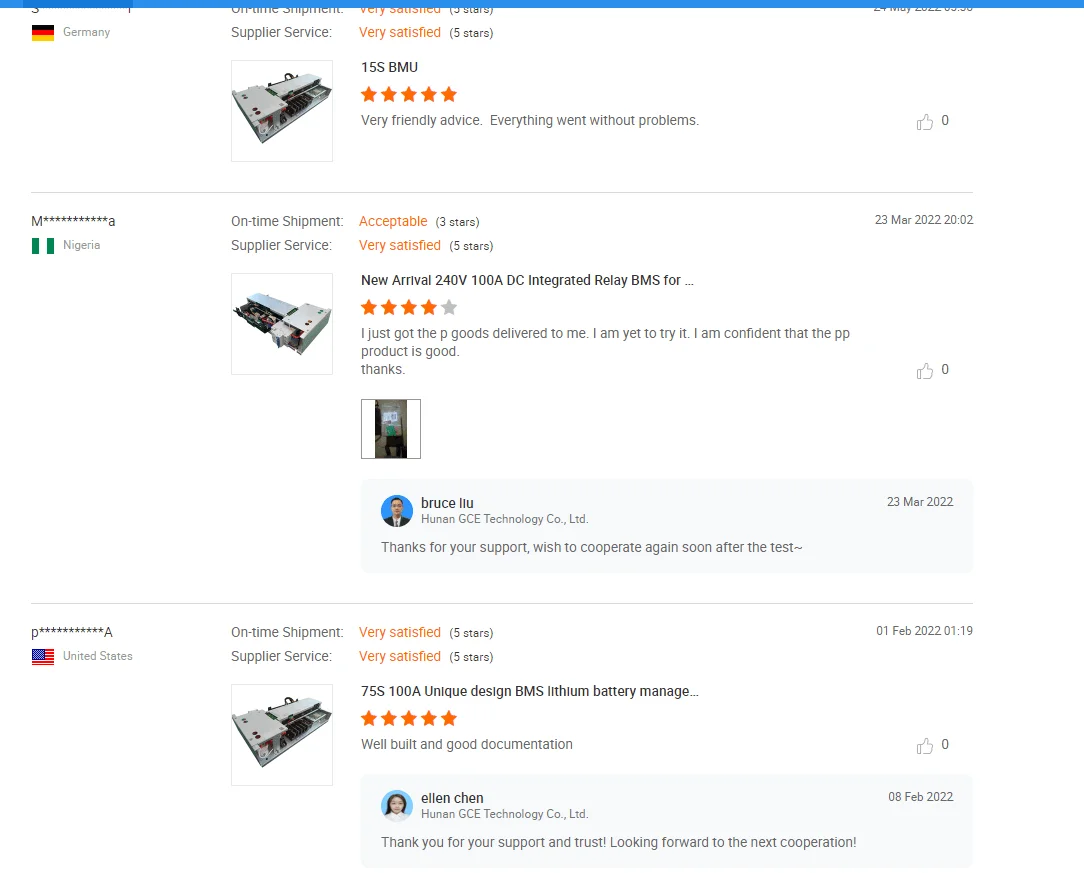

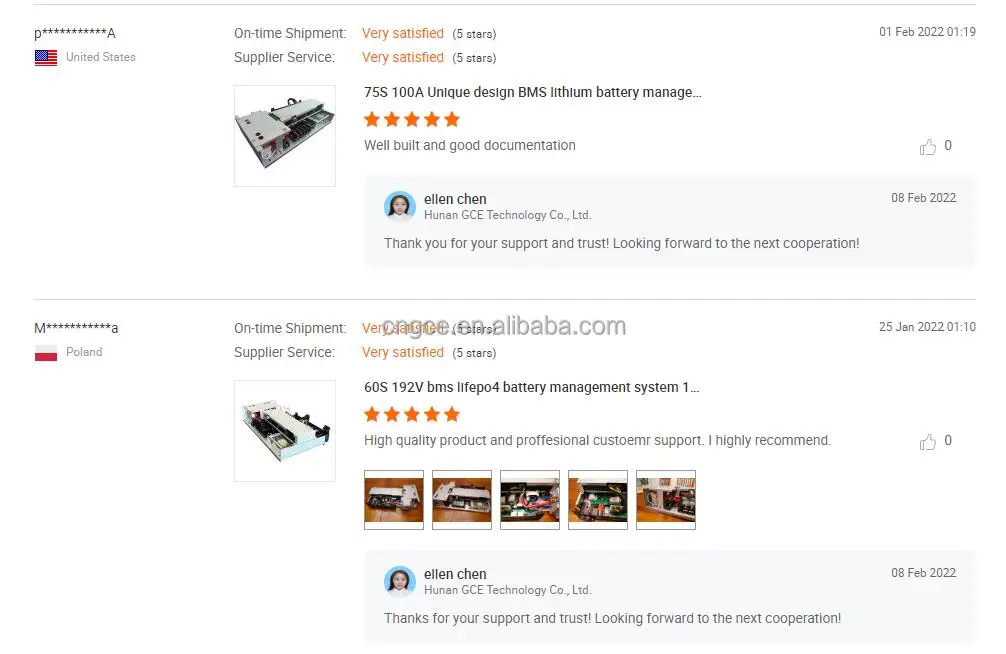

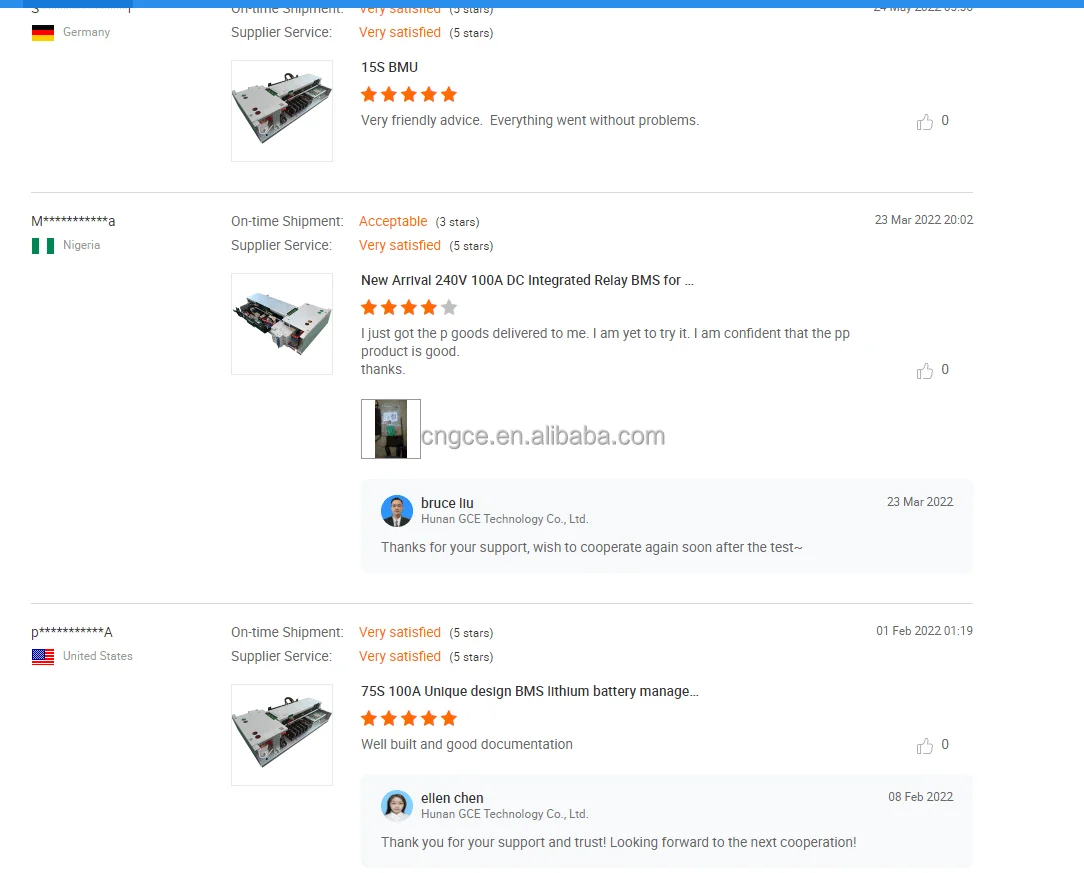

Customer Comments

Certifications

FAQ

1. Are you a manufacturer or simply a trading company?
We are a manufacturer, and we sincerely welcome you to visit our factory.

2. Can I get some samples?
Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO

4. How about the delivery time?
The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.

5.What are your terms of payment?
Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.

6. What are your warranty terms?
We offer a 3-year warranty for RBMS,1-year warranty for PCB.

7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small adjustments.

8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling
process. Each product will be tested before packing & shipping.

9. What Trade Terms are available?
No limitation on the trade terms. We normally do EXW for orders amounts smaller than 20000USD, and FOB for the rest ones.
Moreover,we can send BMS via DHL&UPS&FEDEX quickly and easily.

10. Is your BMS easy and convenient to install&test?
This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say, you don't need professional
technology to install our high-voltage BMS to form a complete battery system.

11.What benefits do customers get?
Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also
set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient
performance of the system.

12:How to Contact with you?
You can contact with Cara for quotation.Her whatsapp&Skype:+8617321496453, Email:cara@hngce.com
